Product Description
Synergy 3" Stage 3 Suspension System (Gladiator JT 2020+)
Synergy MFG Suspension Systems use a synergistic approach, meaning the combined effect of the components is greater than the sum of the individual parts. The overall performance of the system is the most important factor when we are designing components to work together. Synergy MFG Suspension Systems are complete systems for your vehicle and include all necessary components for the lift height and performance advertised.
The Jeep JT Stage 3 Suspension System is a coil spring 3 & 4-inch lift designed around 40-inch tires for Rubicon models and 37-inch tires for non-Rubicon models (See fender and bump stop spacing recommendations below). This system is designed to be the most capable performance coil spring lift in its price category.

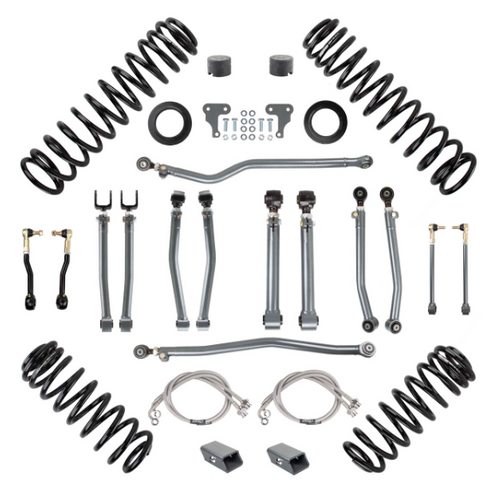

Kit Includes:
- One (1) front coil spring pair
- One (1) rear coil spring pair
- One (1) Snap-Lock bump stop spacers
- One (1) rear bump stop extension
- One (1) pair of front sway bar links
- One (1) pair of rear sway bar links
- One (1) adjustable drag link
- One (1) front track bar relocation bracket
- One (1) rear track bar relocation bracket
- One (1) pair of front lower adjustable control arms
- One (1) pair of front upper adjustable control arms
- One (1) pair of rear lower adjustable control arms
- One (1) pair of rear upper adjustable control arms
- One (1) pair of rear extended brake lines
- Necessary hardware
- Installation instructions
- Multi-rate, progressively wound coil springs increase lift height over stock
- Front and rear control arms are adjustable to allow for caster correction and re-centering of the front axle
- Front and rear bump stop spacer kits included to provide the necessary clearance required for larger tires
- Front and rear track bar relocation brackets for increased strength and help retain factory ride
- Front and rear sway bar link relocation brackets maintain factory sway bar geometry to allow full articulation of the rear suspension and maintain compatibility with stock wheels
- Rear brake lines allow the suspension to fully articulate without putting unnecessary stress on the lines and fittings
- Suspension components feature a two-stage, abrasion-resistant powder coat finish
- 100% bolt on application
- Improved on and off road performance
- Lifetime warranty on all hard parts
- Full upgradeable to higher level systems
- Estimated installation time: 6-8 hours

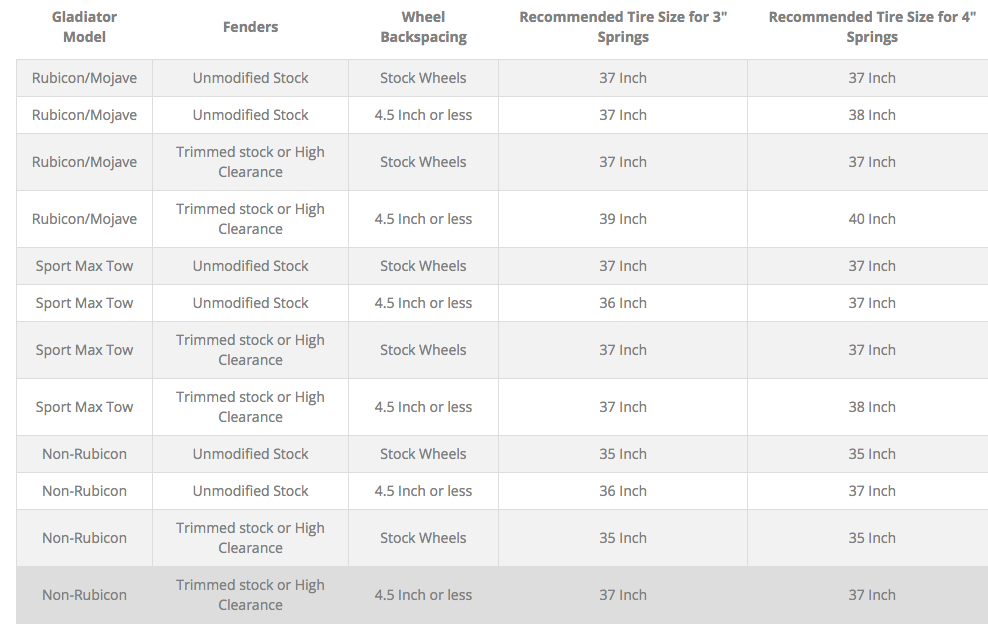

Wheel and Tire Fitment:
- Recommended tire size is limited by fender clearance. With higher clearance. With higher clearance fenders or trimmed fenders, larger tires may be fitted. Bump stop spacing should be matched to the collapsed length of the shocks. Mismatched bump stop spacing and shocks will limit the available travel from the system.
Notes:
** Recommended addition of Synergy JL/JLU/JT Sway Bar Link Disconnect Brackets (8859-12) on both Rubicon and non-Rubicon models to maximize front wheel travel
*** Synergy coil springs lift the vehicle the advertised height over stock based on a fully loaded Rubicon JT. Other JT models (non-Rubicon/Mojave) will see more lift over stock. If you prefer the vehicle to sit level when unloaded, we recommend adding a small coil spacer to the front (8017-075).
**** Synergy and Offroad Elements Inc. are not responsible for maintaining finish on products. Environmental factors will affect rate of corrosion and wear for items advertised to be corrosion resistant. We recommend using protective coatings for all items that will see extended outdoor and off road use.
***** Synergy Anti-Seize (4118) is recommended on all adjustable steering and suspension components for increased longevity.
****** PLEASE ALLOW A LEAD TIME OF 4-6+ WEEKS FOR PRODUCTION AND SHIPPING DEPENDING ON DEMAND. FEEL FREE TO CONTACT US PRIOR TO ORDERING FOR A CHECK ON INVENTORY
