Rock Krawler 4.5" X Factor "No Limits" System | 4 Door (Wrangler JL 2018+)
The Rock Krawler JL 4.5 X Factor Mid Arm System was designed for those who want a complete bolt-in installation, maximum articulation from a mid-arm kit and the durability and off-road performance you expect from Rock Krawler Suspension. The X Factor Series adjustable lower control arms offer a total of 90 degrees of misalignment that eliminates the bind found in your JL’s factory lowers, while high misalignment adjustable upper control arms let you precision tune your JL’s caster both front and rear. Rock Krawler’s industry leading triple rate coils give you 4.5" of lift to clear up to 40" tires, depending on model, and improve the on-road ride over the factory linear rate springs. All Rock Krawler JL systems include correction pads that reduce the spring bow inherent in the factory set up. The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in on road handling.

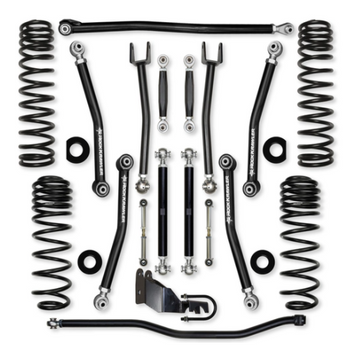

Kit Includes:
- Four (4) Triple rate coil springs
- Two (2) Front adjustable lower control arms
- Two (2) Front adjustable upper control arms
- Two (2) Front spring pads
- One (1) Adjustable front track bar
- Two (2) "No Limits" sway bar links
- Two (2) Sway bar link relocation brackets
- Two (2) Sway bar disconnect straps
- Two (2) Rear adjustable lower control arms
- Two (2) Rear adjustable upper control arms
- Two (2) Rear spring pads
- Two (2) Extended rear sway bar links
- One (1) Adjustable rear track bar
- One (1) Bolt-on rear track bar relocation bracket
- Complete Bolt in System
- Excellent Highway Ride
- Improved Off-Road Ability
- Triple Rate Coil Springs
- Front & Rear Spring Leveling Pads
- Lifetime Warranty on All Hard Parts
- Upgradeable to Rock Krawler JL Long Arm
- Jeep remains level on all 4 corners
Tire Fitment:
Sport and Sahara with Full OEM Fenders
37" Tall Tires (3" Bump Stop Height Recommended)
Sport and Sahara with Trimmed or High Lined OEM Fenders
38" Tall Tires (3" Bump Stop Height Recommended)
Rubicon with Full OEM Fenders
37"/38" Tall Tires (3" Bump Stop Height Recommended)
Rubicon with Trimmed or High Lined OEM Fenders
40" Tall Tires (3" Bump Stop Height Recommended)
Wheel Fitment:
Sport and Sahara Wheel Fitment Recommendations
37"/38" Tall Tires - Recommend 3.5" of Backspacing
Rubicon Fitment Recommendations
37" Tall Tires – Recommend 4.5" of Backspacing
40" Tall Tires – Recommend 3.5" of Backspacing
Notes:
** PLEASE ALLOW A LEAD TIME OF 1-3 WEEKS FOR PRODUCTION AND SHIPPING DEPENDING ON DEMAND. FEEL FREE TO CONTACT US PRIOR TO ORDERING FOR A CHECK ON INVENTORY
*** All lift heights based on Rubicon models for standard style build (i.e., front bumper and winch, rear bumper and full-size spare).
**** If building with a spare delete, we recommend dropping 1” in coil lift height for the rear. If building an overland or heavily upfitted build in the back, we recommend upsizing 1” in coil lift height for the rear.
***** Recommend a new front C.V. driveshaft for all front shocks with max. extended length greater than 29"
****** Requires welding of the Front and Rear Long Arm Mounts, removal of the OEM frame side lower front and rear control arm mounts, removal of the OEM frame side upper control arm mounts
******* Recommend installing limiting straps to avoid over extension of suspension components after vehicle is set up
******** Requires 3" bump stops both front and rear
