Product Description
PSC Cylinder Assist Steering Kit | Rubicon 392 | Aftermarket Front Axle 8.0" Lock to Lock (Wrangler JL 2021+)
The New Jeep JL is equipped with new computer controlled electro-hydraulic steering (EHPS), electronic stability control (ESC), electronic roll mitigation (ERM), and a weight saving aluminum housing steering gearbox.
PSC has taken the Jeep JL steering system back to the drawing board and engineered our exclusive Big Bore XD-JL Steering Gearbox and a traditional belt-driven High Flow Mechanical Power Steering Pump Conversion, producing an essential upgrade to solve the undesireable factory steering performance while able to efficiently handle the increased torque loads due to larger tire sizes and installing aftermarket axle assemblies.
The larger size of the BIG BORE XD-JL Steering Gearbox may prohibit the use of some aftermarket track bars.

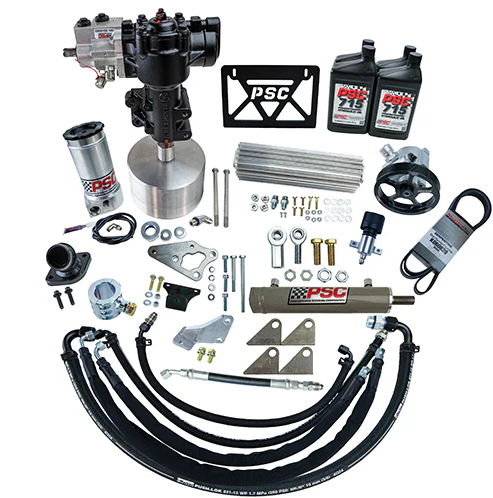

Kit Includes:
- One (1) Big Bore XD-JL steering gear box
- High flow mechanical pump conversion kit
- Reservoir kit
- High pressure hose assembly
- Return line kit
- Steering assist cylinder
- Fluid cooler kit
- Swepco power steering fluid
- Necessary hardware
- Eliminates excessive on-center steering wheel "play"
- Eliminates electro-hydraulic pump overheating
- Increased torque output turns tire sizes over 35"
- Improved turning capability when locking differentials are engaged
Notes:
** Use Hardware Kit HWK-689-PP when installing the Synergy MFG track bar and sector shaft brace with this product. Using the shorter OEM or the standard 100mm bolts supplied could result in steering gear box case failure.
*** The larger size of the steering gear box may prohibit the use of some aftermarket track bars
**** A Tazer JL Programmer (Tazer JL or Tazer Mini) will need to be purchased to override the OEM electro-hydraulic pump functions when installing the high flow mechanical pump conversion kit.
***** Positive caster increases align torque, aka the force that straightens the steering wheel when you go forward, which improves straight line stability of the car. Due to the geometry of positive caster this will also increase negative camber gain when turning, which will enable a wider tire contact patch. The caster angle is a major contributor to directional control. An insufficient amount of positive caster angle will decrease driver effort at the steering wheel, but may make the vehicle too sensitive and twitchy, especially as speed increases. To achieve the best on-the-road driving experience, recommended front axle caster setting is 7 degrees positive.
