Product Description
Motobilt Front Crusher Bumper with Bull Bar (Wrangler JL & Gladiator JT 2018+)

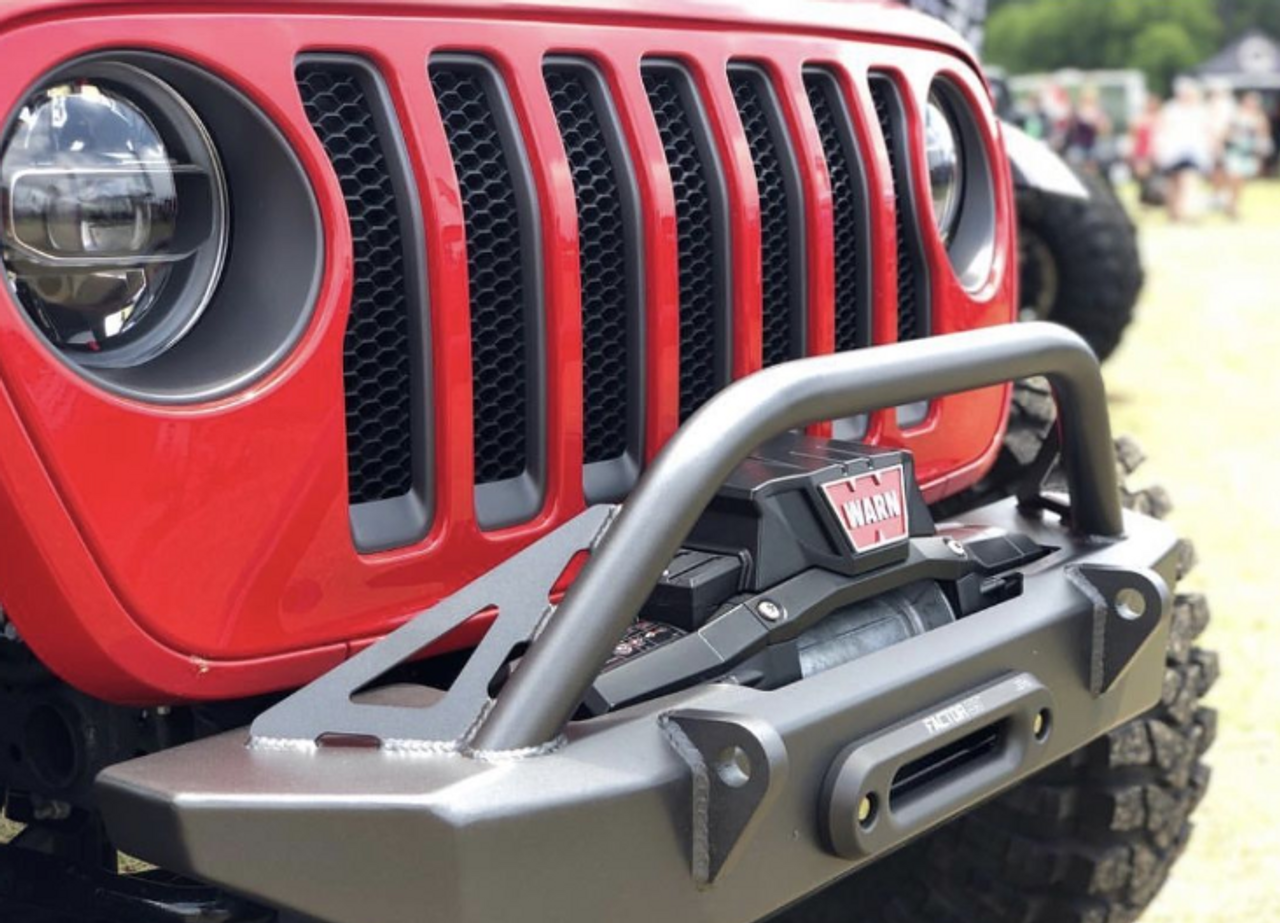

The Motobilt Jeep Wrangler JL Crusher recessed winch bumper with bull bar will provide you the ultimate in protection and recovery. The bumper allows you to secure your winch down low in between the frame rails. The winch bolt pattern will accept multiple style winches up to a Warn Zeon. The high clearance design includes a built in skid plate also. The bumper is made from 3/16 inch thick steel plate that is laser cut at Motobilt HQ then CNC bent. The bumper uses 3/4 inch thick laser cut d ring mounts that pass through the bumper and are welded both inside and out.
These d ring mounts accept many common sizes of recovery shackles (not included). This setup provides for superior strength.
The bull bar is made out of 1 3/4 inch DOM steel tubing. This is the same material used for roll cages and tube chassis so it is built for strength. The shorter design of the bull bar provides good looks and protects your winch.
The bumper measures in at just 46 inch at its widest point. and provides ample clearance for 40 inch tires. The bumper will ship bare metal and will need to be painted or powder coated once you receive it. It comes with all the necessary mounting hardware.
Kit Includes:
- One (1) front bumper
- Necessary hardware
- Installation instructions
- Recessed winch bumper
- Measures 46" at its widest point
- 3/16" steel plate construction
- 3/4" laser cut d-ring mounts that pass through the bumper and are welded inside and out
- 1.75" x .120 wall DOM tube bull bar- braced with laser cut gussets
Notes:
** Ships bare steel for painting or powder coating prior to install. Some prep work may need to be done to remove any imperfections from the manufacturing process, shipping, etc.
*** You must fully install BEFORE painting and then remove for paint or coating
**** Fairlead spacer included to allow use of a centered or offset winch design
***** Does NOT work with Superwinch Exp
****** Mounting holes or brackets for auxiliary lights are not included, but can be easily drilled upon arrival
******* Due to manufacturing differences, you may need to open up the 8 mounting holes on the Jeep frame slightly.
******** Please allow a 2-3 week lead time for production and shipping.
