Product Description
MetalCloak Front Four Link Long Arm Set (Wrangler JK 2007-2018)
The FRONT Four Link Long Arm System provides the most consistent wheel base measurements throughout the cycle of suspension along with improved pinion angle for your Jeep.
This is what you need to change out your front mid-arm suspension to front long arms; MetalCloak provides you with everything you need to complete the job. Thick 2.0 DOM .25 (1/4) wall steel lower control arms provide strength that can take abuse with forged threaded ends for the ultimate in durability. Upper control arms are 1.25DOM .1875 (3/16) and formed to provide clearance for up and down travel. Upper and Lower Control arms utilize our patented Duroflex bushings for bind free, service free articulation.

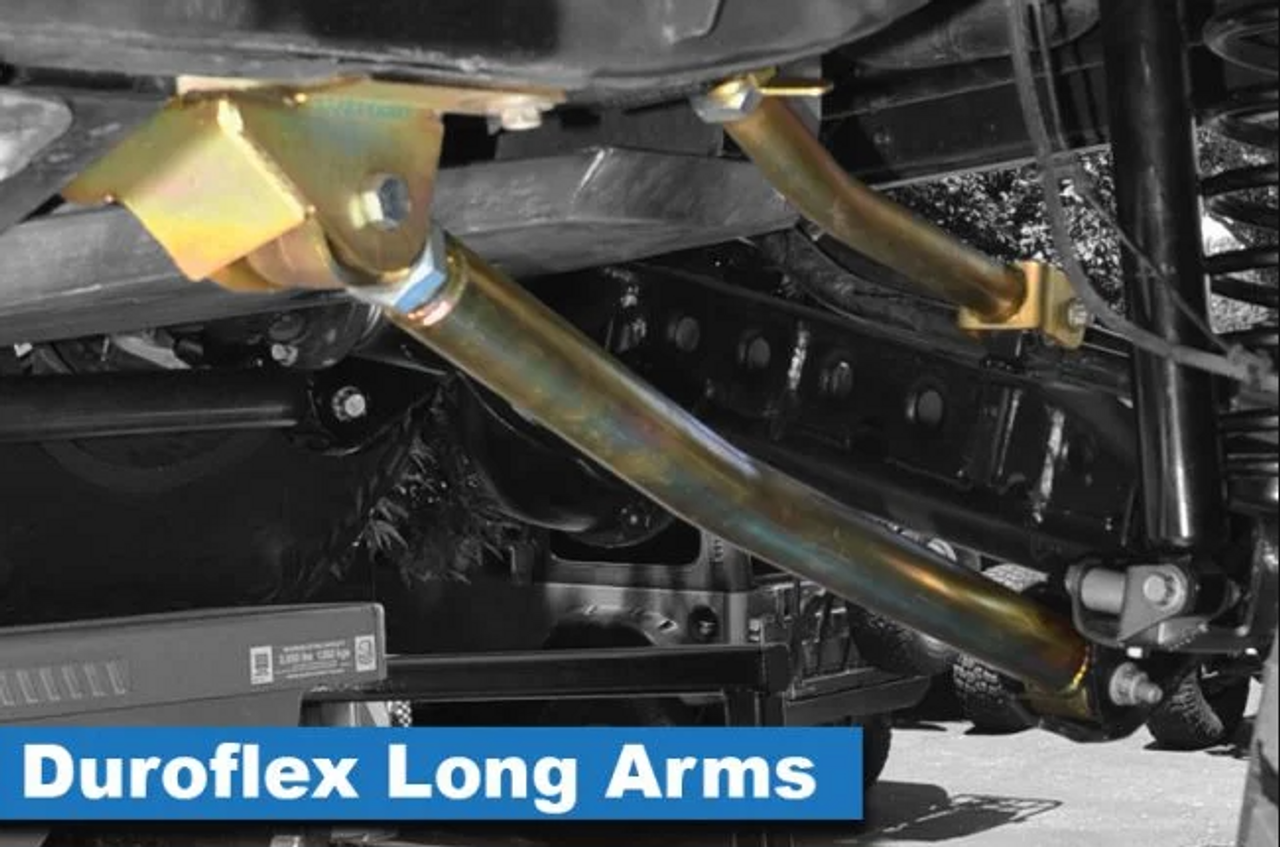

Fitted with Duroflex™ Joints, the only vulcanized elastomer, self-centering joint enhanced with DuPont™ Kevlar® fiber – providing incredible durability with more misalignment in the control arms and better vibration dampening than anything else available. Exclusive to MetalCloak (see detailed info in the main body).

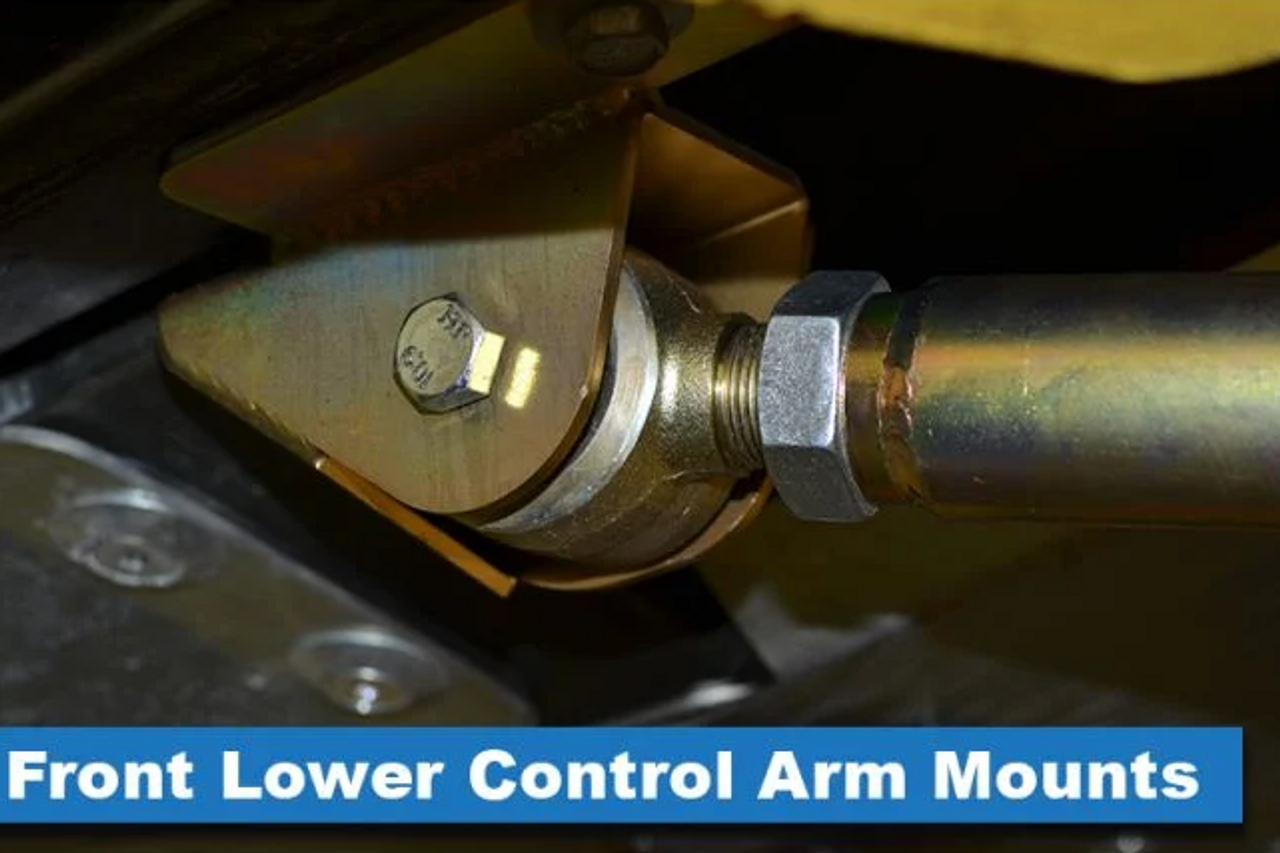

MetalCloak Front JK Long Arm Frame Mounts are used in replacement of the factory mounts when installing the front lower control arms for a long arm suspension. Fully welded and boxed for strength, the 1/4" steel brackets are low profile for clearance and are finished in gold zinc for a long lasting finish.
Choose between the Upper Front Long Arm Bolt-on OR Weld-on Mounts. The upper front mounts are fully welded and boxed for strength, the 1/4" hot rolled steel brackets are low profile for clearance. The Bolt-On brackets come in MetalCloak's signature gold zinc while the Weld-On mounts come in raw metal for your own custom finish. The choice is yours!
This system requires cutting off the factory front control arm brackets and is for the Off-Roader that demands precision when it comes to wheelbase and pinon angles.
MetalCloak's Front Long Arm will feature our best high speed handling properties for on and off-road and the Front Four Link Long Arm System is made in the USA.
- Frame Mounted Lower 1/4in Steel Control Arm Brackets

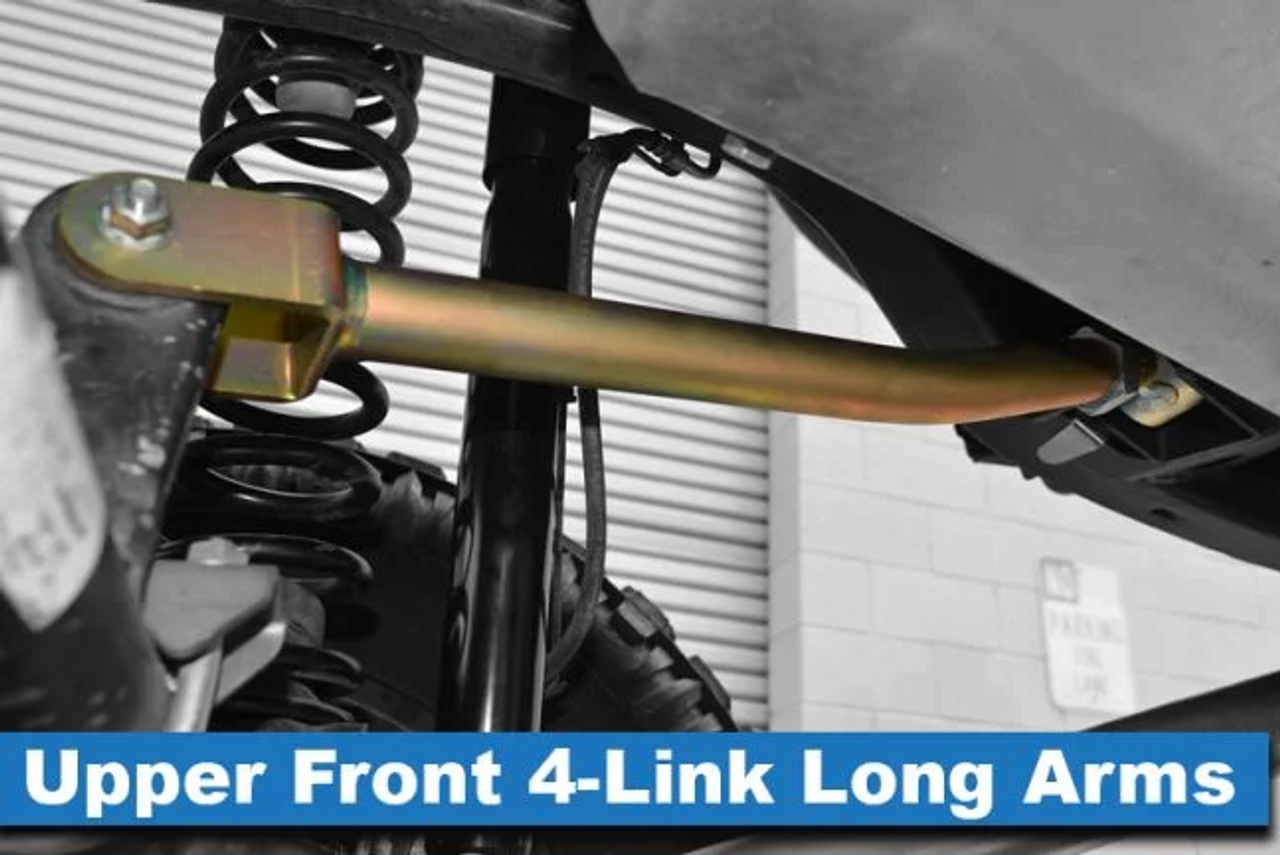

- 2 Upper Long Arm Duroflex Control Arms 1.25DOM .1875 (3/16) wall
- 2 Lower Long Arm Duroflex Control Arms 2.0DOM .25 (1/4) wall
- Choice Between Bolt-on or Weld-on Upper Arm Mounts
- Gold Zinc Protection
- All Required Hardware
- Made in the USA
Notes:
** Exhaust modifications may be required for all 2007-2011 JKs to install this kit to clear the lower front control arm mounts
*** Requires an exhaust loop delete for 2012-2018 JKs
**** PLEASE ALLOW A LEAD TIME OF 2-4 WEEKS FOR PRODUCTION AND SHIPPING
