Product Description
MetalCloak 4.5" Four Link Long Arm Lift | No Shocks | 392 | 4 Door (Wrangler JL 2021+)
Our top of the line Four Link Game Changing Suspension System is a bolt on system that requires ZERO welding and features patented technology available nowhere else.
The MetalCloak Game Changing Duroflex™ Joints are the only vulcanized elastomer, self-centering joint enhanced with DuPont™ Kevlar® fiber – providing incredible durability with more misalignment in the control arms and better vibration dampening than anything else available. Exclusive to MetalCloak (see detailed info in the main body).
The Front Four Link Game Changer is comprised of thick 2.0 DOM .25 (1/4) wall steel front lower control arms with strength that can take abuse with forged threaded ends for the ultimate in durability. The upper front control arms are 1.25 .1875 (3/16) and formed to provide clearance for up and down travel. Upper and Lower Control arms utilize our patented Duroflex bushings for bind free, service free articulation.
The Front Long Arm Frame Mounts are used in replacement of the factory mounts to install the front control arms for the long arm suspension. Mounts are fully welded and boxed for maximum strength; the 1/4" steel brackets are low profile for clearance and are finished in gold zinc for a long lasting finish and feature a bolt-on installation without any welding. *Front factory brackets must be removed for install.
The Rear Long Arm does require cutting off the rear factory control arm brackets but provides the most consistent wheelbase over the full range of travel for optimal performance. Lower Control arms are made of strong 2.0 DOM .25 (1/4) wall steel with strength that can take abuse and are enhanced even further with forged threaded ends for the ultimate in durability. The upper rear control arms are 1.5 .1875 (3/16) and formed to provide clearance for both up and down travel. The Rear "BOLT-ON" Control arm brackets are formed of 1/4 Steel Plate and angled to slide over obstacles with out catching. This system does require cutting off the rear factory control arm brackets and is for the off-roader that demands precision when it comes to wheelbase and pinon angles. MetalCloak's Rear Long Arm will feature our best high speed handling properties for on and off-road and will slightly increase a CTI score over similar height DB3 system.
This system comes with a complete 3/16" steel replacement crossmember! The Crossmember is CAD designed, made of thicker steel over factory and provides additional attachment points that adds structure/strength to your Jeep.
MetalCloak True Dual Rate™ Coils provides the most comfortable and stable ride over traditional single rate lift springs, and provide better load handling than the typical "progressive/multi-rate" coils. Our True Dual Rate coils are extra long in free-length to maintain contact for extreme articulation. MetalCloak has over a decade of proven dual-rate coil performance.
The front true dual rate coils come with MetalCloak's Front Lower Coil Correction Pads. This polymer isolator replaces the OEM plastic part and corrects the coil bow that may be caused when using the worn parts. Fits in factory location and is a quick upgrade to fine tune your Jeep.
MetalCloak Thermoset Elastomer Upper Front Coil Isolator upgrade pads are designed to last and outperform factory parts. The pads are made specifically for MetalCloak True Dual Rate Coils and are model specific.
The Durotrak bushings reduce NVH (noise, vibration and harshness) that can be transferred to the driver and provides a smoother ride while also improving the vehicles steering input. The patented bushing is a 2-part design that can rotate 360 degrees in a vertical plane unhindered while minimizing horizontal forces to keep the Jeeps axle centered and you going in the right direction.
We offer a choice in shocks; run the shock set-up you choose to fit your build needs. If you have a different idea of what shocks will work best for you- go for it. MetalCloak suspensions ARE designed to optimally be used with the patented MetalCloak 6Pak™ Shocks for maximum up and down travel. Our RockSport Shocks (Exclusively at MetalCloak) provide the next longest travel you can get with the simplicity of a standard shock and share the same valving as 6Paks; this is a great option if looking for a no-maintenance option at a great price. The choice is yours to buy the suspension with or without shocks; we recommend our specifically tuned shocks but we leave the choice up to you.
Adjustable height front and rear bump stops are a MetalCloak first and allow you to adjust the travel to be tailored to the size of tire you have optioned for. Add more bump stop or remove to adjust to the clearance you need without having to remove the coils.
All MetalCloak suspension components, are designed for maximum up AND down travel while providing the best suspension geometry available to deliver the performance you demand.
MetalCloak “components” have been proven safe with the FMVSS certificate of safety configured with 37inch tires, full body armor and suspension lift.

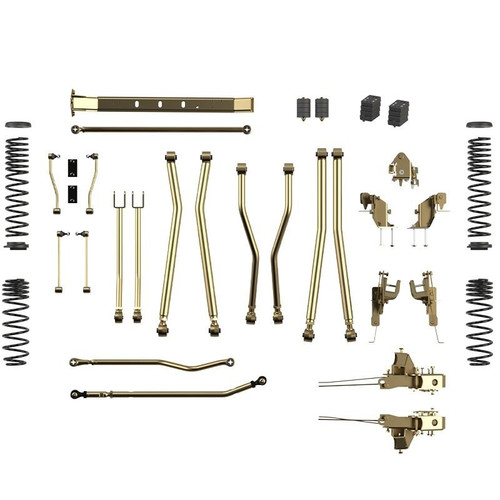

Kit Includes:
- DuroFlex arms (full set)
- Front control arm mounts
- Rear control arm mounts
- Front coil springs
- Rear coil springs
- Lower front coil isolator pads
- Front coil isolators
- Front track bar
- Rear track bar
- Replacement crossmember
- Sway bar links
- Necessary hardware
- Front Long Arm 4Link Bolt On Control Arms
- Duroflex™ Joints enhanced with Kevlar
- 3/16" steel replacement crossmember
- True Dual Rate™ Coils
- Durotrak equipped track bars
- Height adjustable bump stops
- Specifically tuned shocks for True Dual Rate Coils
- Suspension Designed for maximum UP and DOWN travel
- Estimated installation time: 10-12 hours
Notes:
** PLEASE ALLOW A LEAD TIME OF 2-4 WEEKS FOR PRODUCTION AND SHIPPING DEPENDING ON DEMAND. FEEL FREE TO CONTACT US PRIOR TO ORDERING FOR A CHECK ON INVENTORY
*** At certain speeds at 4.5" lift height, driveline vibration may cause premature cv joint wear
**** Due to the long-travel MetalCloak suspensions provide, factory drive shafts will contact OEM components and wear quickly when at the extremes of articulation. An aftermarket driveshaft will be needed.
***** MetalCloak engineers have chosen shocks that have been proven to have the ideal synergy with our systems. We have not tested other shocks on the market as to whether they complement our Game-Changer system or suppress its performance.
****** MetalCloak does not recommend powder coating your True Dual Rate Coils. See instructions for additional details.
******* We Recommend You Have a Suspension Specialist Align Your Jeep Once a MetalCloak Suspension is Installed.
******** This item is being offered as a complete system that contains all the components shown. We cannot customize, replace or remove a component from the kit. If you need a custom order, all components are available individually and our sales team is happy to help you place your order.
Fits:
Jeep Wrangler JL 4 Door Unlimited (2021+) *392 models only
