ICON Vehicle Dynamics 0-2.75" Stage 3 Tubular Suspension (Tacoma Gen 2/3 2005+)
ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5 Series Extended travel coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.75” allowing the use of larger, more aggressive wheel and tire combinations. When used with an ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. ICON 2.0 Aluminum Series remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2016-UP Toyota Tacoma 4WD/PreRunner Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
This system features tubular steel upper control arms with ICON's patent pending Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
KEY FEATURES:
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers provide 0-2.75" of front lift height
- Extended Travel coilovers matched with ICON UCA provides increased front droop travel
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series rear remote reservoir shock with 5/8" shaft
- Bolt-on system means no cutting or welding necessary for install
WHEEL & TIRE FITMENT INFO:
OEM Wheels & Tires: Yes
Aftermarket Wheels: 8.5" Wide, 4.75" Backspace
Aftermarket Tires: 33 x 11.50
(Larger Tires May Fit but Fender Trimming and Modifications will be Required)

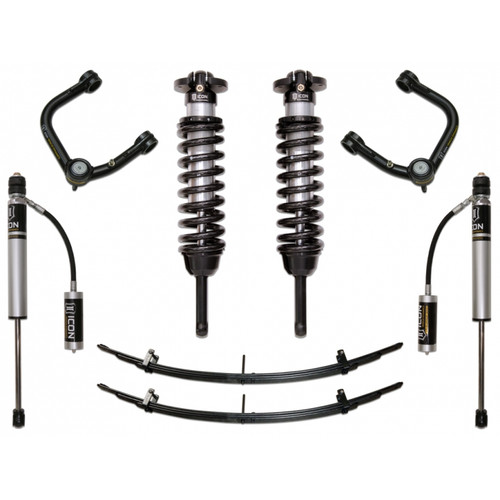

SYSTEM COMPONENTS:
58635 (QTY.1) | 05-UP TACOMA EXT TRAVEL 2.5 VS IR COILOVER KIT
58450DJ (QTY.1) | 05-UP TACOMA TUBULAR UCA DJ KIT
51100 (QTY.1) | 96-UP TACOMA/00-06 TUNDRA 1.5" ADD-A-LEAF KIT
56503R (QTY.2) | 05-UP TACOMA 4WD 0-1.5" REAR 2.0 VS RR
OPTIONS: (Please call for add-ons)
191011 | Uni Ball Cover Cap for Tubular UCA
158508 | 700 Pound Coil Spring (QTY-2)
191003 | Short Coilover Wraps
198000 | Spanner Wrench
56101 | 2005-2015 Tacoma/07-09 FJ/03-09 4 Runner LCA Skid Plates
56103 | 2005-UP Tacoma Rear Air Bump Kit
56105 | Rear Stiker Kit for U-Bolt Flip
56102 | S2 Shock Hoop Kit
59706 | S2 Secondary 2.5 Remote Reservoir Shocks
59706 | S2 Secondary 2.5 Remote Reservoir CDC Shocks
59906 | S2 Secondary 2.5 Remote Reservoir Omega Shocks
