Product Description

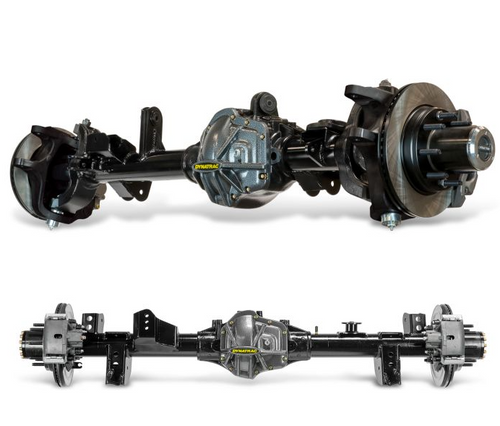

Dynatrac Hard Core Plus 60/60 Axle Set | 68.5" Wide (Gladiator JT 2020+)
The Hard Core Plus ProRock XD60/XD60 Axle Set™ is for Jeep Gladiator JT owners who want more than just “one-ton” axles. This axle set delivers Dynatrac ProRock XD60® technology front and rear. Unbeatable durability with more axle rigidity to better hold proper gear mesh under extreme loads. The exclusive Dynatrac 1550LT® wheel ends provide tighter turning, less locker bind when turning, reduced steering effort and less wear-and-tear on steering components. And both axles offer best-in-class ground clearance.
The Hard Core Plus ProRock XD60/XD60 Axle Set™ is for Jeep Gladiator JT owners running tires up to 40-inches in diameter who do not want to be limited to what trials or challenges they encounter.
Front Axle Specs:
- Dynatrac exclusive patented ProRock® nodular-iron, high-pinion ProRock XD60® centersection with bearing bores to handle oversize pinion and carrier bearings for elite housing rigidity.
- More ground clearance than any other axle housing in its class.
- 3.75-inch diameter, variable wall thickness, lightweight, chromoly tubing has the highest strength-to-weight ratio compared to any other light-truck axle on the market.
- Dynatrac exclusive Dual-Sump High Volume™ (DSHV) oiling system to ensure the outer pinion bearing is never without lubrication.
- Dynatrac-exclusive U.S.-made forged, double-heat-treated 1550 35-spline axleshaft assemblies. These are the best shafts in the industry and are capable of up to 50-degree turning angles.
- Our new 1550 LT® high-strength, lightweight, military-grade, aluminum knuckles are loaded with our best set of Dynatrac HD BallJoints™ yet. These are the last balljoints you’ll ever need, and are designed with larger stems and bodies for long life and high durability with big tires.
- Forged 4140, heat-treated, fixed spindles and serviceable wheel bearings support tires up to 44 inches.
- No other 4x4 front axle offers the ease of steering, lowscrub radius, effective Ackermann angle and high steering linkage positioning.
- Includes Dynatrac high capacity 13.25-inch brake upgrade with new dual-piston front calipers and vented rotors.
- Includes our latest integrated track bar and ram-assist steering mounting package.
- Includes new HD tie rod, integral steering arm, control arm bushings, CNC laser-cut HD suspension brackets, all professionally welded and installed.
- Includes DynaLoc™ locking hubs. DynaLoc hubs are over 3 times stronger than all other locking hubs on the market.
NOTE: Comes with 35-spline shafts, hubs and locker.
Rear Axle Specs:
- Exclusive XD60 rear housing with ProRock ground clearance
- Low-pinion, standard-cut gearing for ideal rear-axle application
- Increased pumpkin rigidity – better stability in gear mesh for higher durability under extreme loads
- Better strength, better gear stability
- High-capacity carrier-bearing saddle structure
- 7/16-inch cover bolts – cover now adds additional structure to the housing
- O-ring cover seal and hard contact mating surfaces
- Best ground clearance – No ribs underneath
- Industry leading 4-inch axle tubes
- Best strength-to-weight ratio
Notes:
** PLEASE ALLOW A LEAD TIME OF 8-12+ WEEKS FOR PRODUCTION AND SHIPPING DEPENDING ON DEMAND. FEEL FREE TO CONTACT US PRIOR TO ORDERING FOR A CHECK ON INVENTORY
