Product Description

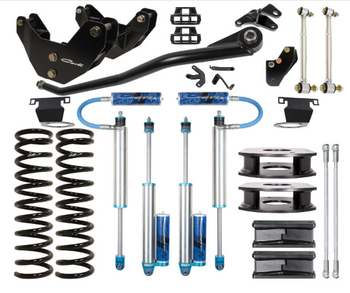

Carli Suspension 3.25" Pintop System | Diesel | 2500 | Air Ride (Ram 2019+)
Kit Includes:
- Front linear rate coil springs
- King remote reservoir shocks
- Adjustable track bar with stabilizer bracket
- Radius arm drops
- Front bump drops
- Transmission crossmember
- Rear track bar drop
- Rear sway bar end links
- Airbag spacer
- Rear bump stop drop
- Extended sensor link
- Front Lift: 3.25"
- Rear Lift: 2"
- Front Travel: 9.6"
- Rear Travel: 9"
- 2.5" King Remote Reservoir Shocks
- Tire Fitment: 37x12.5
Add Ons:
- Front Sway Bar- *REQUIRED* - You MUST select a Sway Bar option with the BASE Kit. This System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Drops is only recommended for customers requiring the stiff rate of the factory sway bar - i.e.: those with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.
- Low Mount Steering Stabilizer- Bolt in steering stabilizer (factory location). Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.
- High Mount Steering Stabilizer- Bolt in stabilizer adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains.
- Radius Arms- Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, and Serviceable 3" - 17-4 Stainless Steel Spherical Bearings.
- Front Differential Guard- Better to have it and not need it than need it and not have it.
- Ball Joints- Do your ball joints once, grease every oil change and forget they exist...
